3D Laser Scanning / RE

Physical to Digital: How 3D Laser Scanning Drives Reverse Engineering

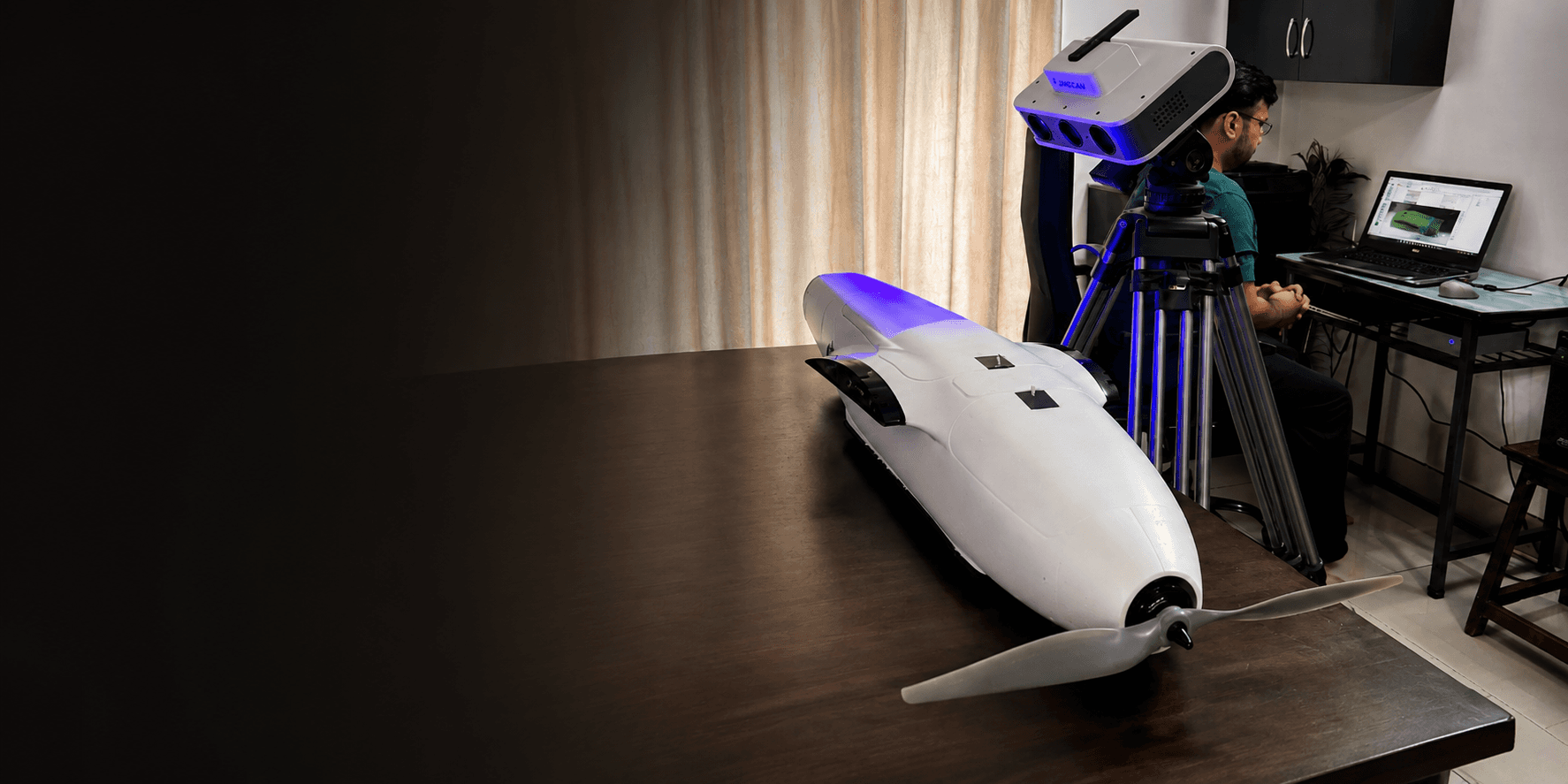

At HIGH On 3D, we use industrial 3D scanning technology to capture complete component geometries with high precision, bridging the physical and digital worlds.

Our end-to-end scanning and reverse engineering workflow converts physical parts into parametric CAD models, 2D engineering drawings, and inspection reports—helping Indian manufacturers speed up product development, reduce import dependencies, and streamline remanufacturing.

As an expert 3D laser scanning and reverse engineering service provider, we specialize in high-accuracy blue-light optical scanning, CMM quality control inspection, and legacy part digitizing with tolerances up to ±0.02 mm. From complex automotive castings and industrial die tooling to legacy machinery components, our metrology team delivers native STEP/IGES CAD files and quality assurance reports to engineering firms and manufacturing clients globally.

Get a Quote

Key Applications & Industry Use Cases

We serve a wide variety of industries with high precision scanning.

Obsolete Part Reproduction

Re-create discontinued spare parts for industrial machinery, pumps, and automotive assemblies when OEM drawings are unavailable.

Die, Mold & Tooling Modifications

Aftermarket Engineering

Localization & Import Substitution

Key Benefits

Delivering performance, precision, and production efficiency with every build.

High-Precision Geometry Capture

Accurately digitize freeform surfaces, complex internal channels, and intricate profiles that vernier calipers and height gauges cannot measure.

Parametric CAD Modeling

Convert physical parts into fully editable, production-ready CAD files for CNC machining, 3D printing, or die making.

No Legacy CAD Needed

Reconstruct exact digital models directly from worn, broken, or undocumented machinery parts.

Quality Inspection & Tolerance Checking

Overlay scan data against nominal CAD models to pinpoint manufacturing deviations, die wear, or casting shrinkage.

Have a part with no drawings?

Send us the physical component — we'll scan it, rebuild an editable CAD model, and deliver drawings and an inspection report so you can remanufacture with confidence.

Get Instant Quote Talk to Our Engineer

Frequently Asked Questions

The questions Indian buyers ask most about 3D scanning and reverse engineering. Still unsure? Talk to our engineers.

What do I receive at the end?

A complete digital package: editable parametric CAD (STEP/native), 2D engineering drawings with GD&T, mesh/point-cloud files, and an inspection deviation report — everything needed to remanufacture the part.

Can you reverse engineer a part with no drawings?

Yes — that's the core use case. We reconstruct exact digital models directly from worn, broken, or undocumented parts, no legacy CAD required.

How accurate is the scan?

Down to roughly ±0.02 mm depending on part size, surface, and features. We can capture freeform surfaces and internal profiles that calipers can't reach.

Can you help substitute an imported component?

Yes. We reverse engineer imported parts into manufacturable CAD to enable indigenous, Make-in-India production and local vendor development.

Do you provide GST invoicing and pan-India service?

Yes. We are a Pune-based, ISO 9001:2015 certified company with GST-compliant invoicing and service across India.
