SLA 3D Printing:
Ultra-Fine Details & Master Models

Smooth Surface Finishes. Micro-Accuracy.
Superior Aesthetic Prototypes.

We are an ISO 9001:2015 certified company. Learn more →

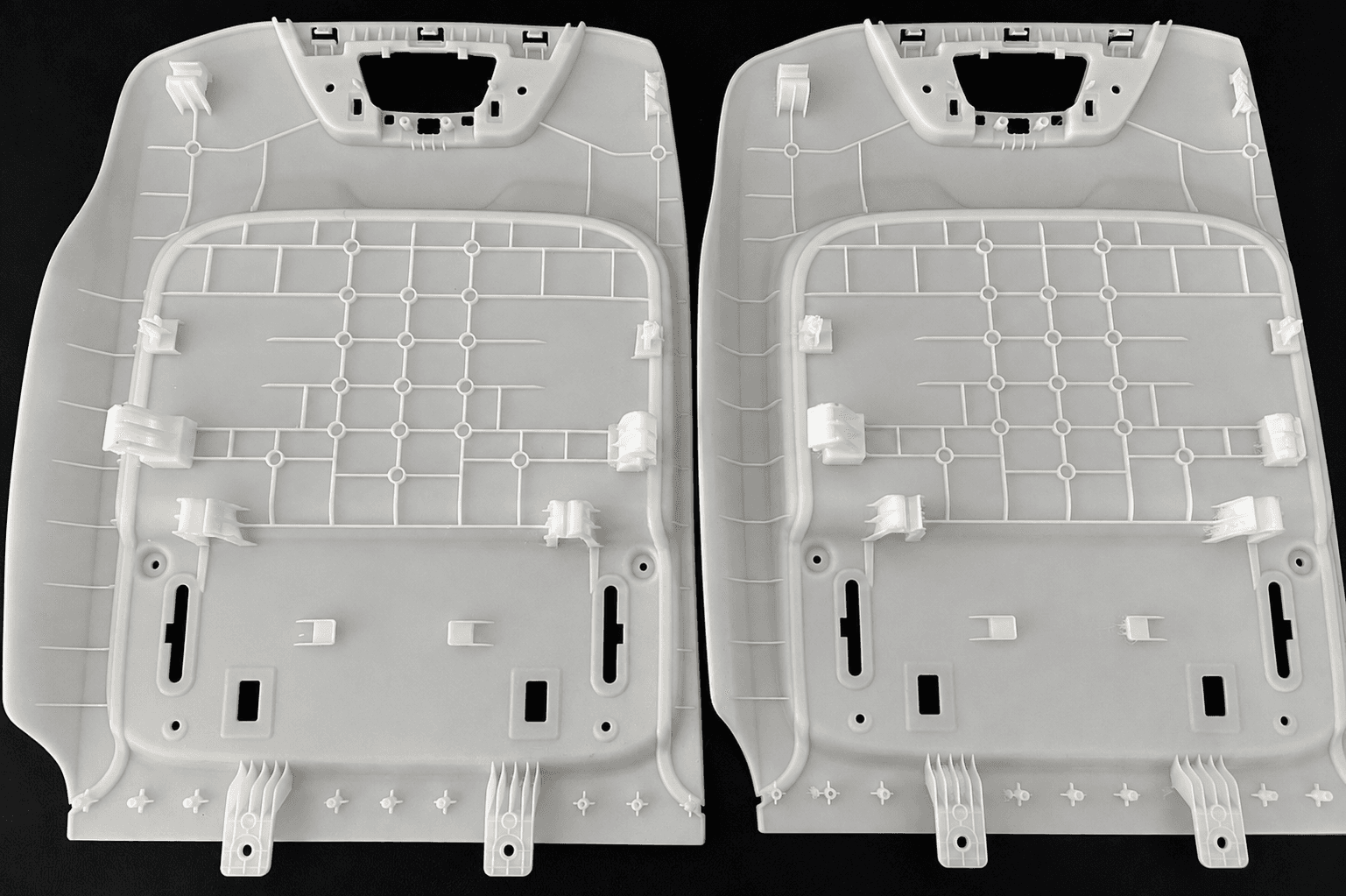

What is SLA 3D Printing?

Stereolithography (SLA) is the industrial standard for producing high-resolution polymer parts with exceptional surface smoothness and intricate feature detail. At HIGH On 3D, we utilize precision UV lasers to photo-cure liquid epoxy-based resins layer-by-layer directly from 3D CAD data.

SLA delivers tight dimensional tolerances and crisp edge definition, making it the ideal process for visual presentation models, form-fit-function testing, micro-fluidic components, and high-precision master patterns for silicone vacuum casting.

Gallery

Machine Infrastructure & Capabilities

Three complementary SLA platforms — from large-format covers to clear optical parts and ultra-fine micro-features.

MAGFORMS SL800 (Large-Format SLA)

Specifications: Build Platform: 800×800×550 mm | Accuracy: ±0.2 mm | Layer Thickness: 0.10 mm
Recommended Applications: Large automotive dashboards, full-scale vehicle light housings, architectural models, and massive single-piece covers.

MAGFORMS SL600 (Dedicated Clear Resin Platform)

Formlabs Form 4L (Ultra-Precision Desktop/Industrial SLA)

SLA Material Specifications Matrix

Material Grade	Polymer Equivalent	Key Characteristics	Primary Applications
Magforms GM1618	ABS-Like White	High durability, crisp edge detail, easy post-finishing	Functional testing, aesthetic display models, snap-fits
Magforms Crysplus 1801	PC-Like Clear	Acrylic-like transparency (light transmission)	Optical lenses, clear fluid channels, lighting prototypes
Formlabs Tough 2000 V2	Tough Black	High strength, ABS-comparable stiffness, creep resistance	Rugged enclosures, wear pads, motor mounts, functional latches

Key Benefits

Delivering performance, precision, and production efficiency with every build.

Injection-Molded Surface Finish

Achieve smooth, injection-quality surface finishes directly out of the build chamber with minimal post-processing effort.

Micro-Accuracy

Hold tight tolerances down to fine wall thicknesses, small features, and intricate details.

Ideal Master Patterns for Vacuum Casting

Create ultra-smooth master parts used to pour silicone molds for low-volume polyurethane production.

Versatile Post-Finishing Options

SLA parts readily accept sand-blasting, priming, custom paint, metallic plating, and optical polishing for presentation models.

Industrial Grade

Reliable. Strong. Proven.

High Precision

Engineered for accuracy.

Faster Production

Days, not weeks.

Lightweight Design

Stronger parts, less weight.

How to Get Started

Upload 3D CAD File

Supported formats: .STL, .STEP, or .IGES.
Submit your 3D CAD model through our secure portal for technical review and layer thickness optimization.

Select Material & Surface Finish

Select ABS-Like, PC-Like Clear, or Tough Black resin.
Choose your resin grade based on required transparency, rigidity, and surface finish (as-printed, painted, or optically polished).

Receive Quotation & Production

Laser curing, support removal, UV post-curing, and dispatch.
Approve your technical quote and lead-time schedule to initiate rapid printing, with delivery typically within 2 to 4 business days.

Technical Specifications

Typical SLA capabilities at HIGH On 3D across our industrial platforms.

Specification	Details
Max Build volume (Bed Size)	800 × 800 × 550 mm (MAGFORMS SL800)
High-Detail Build Volume	353 × 192 × 350 mm (Form 4L)
Layer thickness	0.05 – 0.10 mm
Accuracy / Tolerance	±0.025 mm to ±0.2 mm
Materials	ABS-Like, PC-Like Clear, Tough Black
Finishes	As-printed, painted, optically polished

Frequently Asked Questions

The questions Indian buyers ask most before starting an injection molding project. Still unsure? Talk to our engineers.

How much does injection molding tooling cost in India?

It depends on part size, complexity and expected volume. Rapid aluminium tooling is far more affordable than production steel and is ideal for pilot and bridge runs. Share your part for an itemised tooling and per-part quote.

What is the minimum order quantity?

Injection molding is most economical from a few hundred parts upward, since tooling cost is amortised across the run. For smaller quantities, vacuum casting or CNC machining is often more cost-effective — we'll advise the best route.

How long does it take to get production parts?

Rapid aluminium tooling typically takes 3-6 weeks, after which parts are produced quickly. We provide first-article samples for approval before full production.

What is the typical turnaround time in India?

Most projects are delivered within a few working days to two weeks depending on size, complexity and quantity. Share your file for an exact timeline — rush options are often available.

Do you provide GST-compliant invoicing and pan-India delivery?

Yes. We are a Pune-based, ISO 9001:2015 certified company offering fully GST-compliant invoicing and reliable, insured delivery across India — Mumbai, Bengaluru, Delhi-NCR, Chennai, Hyderabad, Ahmedabad and beyond.

How do I get started and receive a quote?

Upload your CAD, STL or STEP file through our quote page, or talk to our engineers. We review your design for manufacturability and send a transparent, itemised quote.
